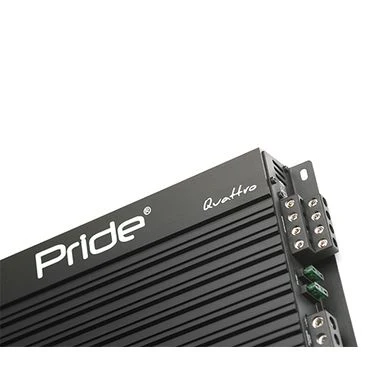

Pride Quattro 100W 4-Channel Amp

Amplifier Pride Quattro

Practical, reliable, easy to use, Pride Quattro – car amplifier model combines this and much more. You can’t do without an amplifier if you want to connect powerful speakers, a subwoofer, or run a 2 or 3-way system. Thanks to it, you can enjoy loud and high-quality music in your car.

Pride Quattro is a 4-channel AB class amplifier equipped with advanced frequency filters.

The Quattro model works stably at a load of 2 ohms per channel, or 4 ohms in the “bridge on” mode of the channels. The power of each of the four channels is 75 W for a load of 4 Ohms or 95 W for a load of 2 Ohms, at a voltage of 14.4 V and K.N.I. 1%.

Range of reproduced frequencies, Hz 15 – 30000

RMS rated power of 2 ohms, number of channels x W 100
RMS rated power of 4 ohms, number of channels x W 75
RMS rated power at 4 ohms, bridge, W 200

You can install a quality solution for Your car and connect 4 channel speakers or Twitters. It is possible to work in 2 Ohms.
Quality of Korea with completion of the Russian engineers.

Our products are available in the USA and you can buy the best car audio equipment right now!



Technical feature
2 Ohm Power	100 W x 4
4 Ohm Power	75 W x 4
4 Ohm Power Mono	200 W x 2
Frequency Response	15 Hz – 30 KHz
Signal to Noise	100 dB
Efficiency @ 4ohm	Over 65%
Damping Factor	> 200
Input Sensitivity	8V-0,3V
High Pass Filter	20 Hz – 8 KHz
Low Pass Filter	50 Hz – 8 KHz
Strap Connection	No
Fuse Rating	60 A (2 x 30А)
Physical feature
Length	290 mm/11,4″
Height	53 mm/2″
Width	220 mm/8,6″
Color	Black

Part number: Q.100
